ARTROMOT-E2

Indicated in the post-op treatment and rehab process of various elbow and arm conditions, the ARTROMOT-E2 offers many useful features, such as the patient chip ...
Learn More
In stock
SKU
80.00.03xE2-INT
Request a Quote

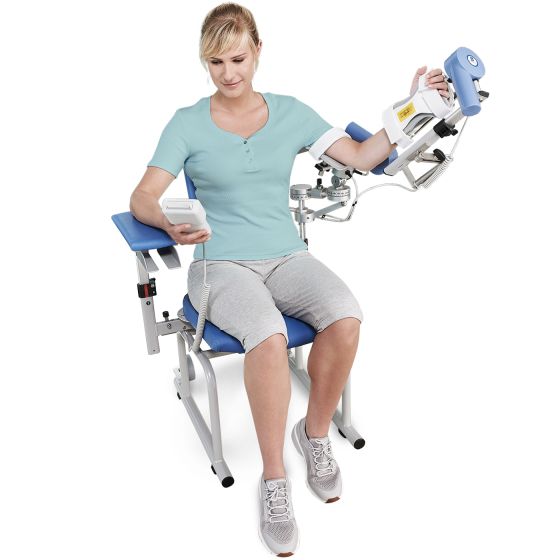

Indicated in the post-op treatment and rehab process of various elbow and arm conditions, the ARTROMOT-E2 offers many useful features, such as the patient chip card, the easy swift conversion, the anatomically correct motion (PNF pattern), and the forearm placement on a carriage with automatic length adjustment and sandwich straps.
INDICATIONS

  • Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrolysis
  • Surgical treatment of fractures and pseudoarthrosis
  • Exercise-stable osteosynthesis
  • Endoprosthetic implants
  • Treatment following mobilization of joints in anesthetized patients
  • Reconstructive surgery of biceps tendons
  • Operations on soft tissue in the joint area

Range of Motion Extension/flexion -5° / 0° / 140°

Pronation/supination 90° / 0° / 90°

ARTROMOT-E2 - Features

  • Motor control: ON/OFF for isolated motion extension/flexion or pronation/supination
  • Synchronized motors: ON = PNF-like motion pattern / OFF = Randomised, asynchronised motion
  • Speed: 1% - 100%
  • Timer: 1 – 59 min/1 – 24h/continuous operation
  • Pauses: 1 – 59 s/ 1 – 59 min
  • Reverse on load in steps (motor A and B separately): 1 - 25/patient safety feature
  • Total therapy time: Added sum of the therapy sessions
  • Warm up protocol: For gradual progression to the maximum range of motion
  • Patient chip card: For storage of the therapy parameters
  • New patient: Activates the default settings for new patients
  • ISO Motion protocol: For separate exercising in both directions
  • EROM Repeat (EX/PRO – FLEX/SUP): Higher rate of motion in the EROM
  • Stretching (EX – FLEX – PRO – SUP): Careful and smooth increase of the range of motion
  • Therapy documentation: Graphic presentation of the overall treatment cycle
  • Key lock function: Prevents accidental changes of the parameter settings
  • Transport setting: Moves the motors into the transport position
  • Service menu

ARTROMOT-E2 Dimensions

Weight 28.7 kg (63.2 Ib)
Dimensions 87.5 x 57.5 x 58 cm (34.4 x 22.6 x 22.8 in)
Suitable for patient height Approx. 120 – 210 cm
max. permanent load on carriage 9 kg
max. permanent load on chair 150 kg

ARTROMOT-E2 Compact Dimensions

Weight 17 kg (37.4 Ib)
Dimensions 87.5 x 57.5 x 29 cm (34.4 x 22.6 x 11.4 in)
Suitable for patient height Approx. 120 – 210 cm
max. permanent load on carriage 9 kg

* Dimensions are listed as L x W x H
