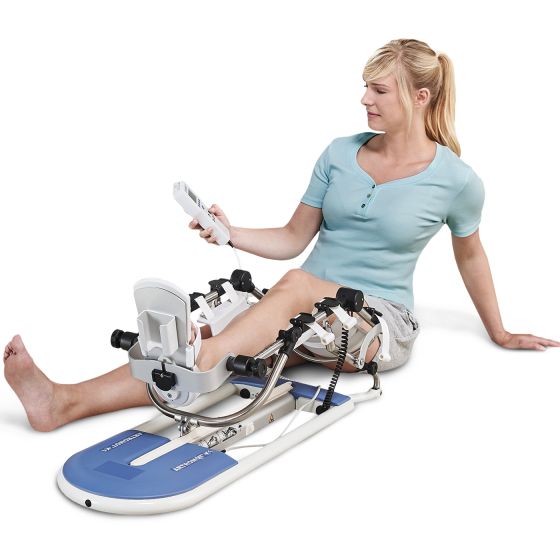

ARTROMOT-K1

ARTROMOT-K1 combines the best features of the time-tested ARTROMOT knee machine with state-of-the-art, trend-setting technology. ARTROMOT-K1 was developed for the demanding use in clinics and home ...
In stock
SKU
80.00.04x-INT

ARTROMOT-K1 combines the best features of the time-tested ARTROMOT knee machine with state-of-the-art, trend-setting technology.

ARTROMOT-K1 was developed for the demanding use in clinics and home care/rental programs. Using the ARTROMOT-K1 is made easy by intuitive operation of the handheld programming unit with self-explanatory symbols. INDICATIONS

  • Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrolysis
  • Treatment following mobilization of joints in anesthetized patients
  • Surgical treatment of fractures and pseudoarthrosis
  • Exercise-stable osteosynthesis
  • Operations on soft tissue in the joint area
  • Patellectomy
  • Corrective osteotomy
  • Meniscectomy
  • Total knee/hip replacement
  • ACL/PCL reconstruction
  • Complex knee surgery
  • Articular cartilage surgery, e.g. autologous chondrocyte transplantation (ACT)

Range of Motion Extension/Flexion

  • Knee -10° / 0° / 120°
  • Hip 0° / 7° / 115

ARTROMOT-K1 Classic - Features

  • Pauses (extension and flexion): 0 - 59 s / 1 - 59 min
  • Speed: 5% - 100 %
  • Key lock function: To prevent accidental changes of the parameter settings

ARTROMOT-K1 Standard - Additional features

  • Timer 1 - 59 minutes / 1 - 24 hours / continuous operation
  • Pauses (extension and/or flexion) 0 - 59 seconds / 1 - 59 minutes
  • Reverse on load in steps 1 - 25 / patient safety feature
  • Warm up protocol: Gradual progression to the maximum range of motion
  • Total therapy time: Added sum of the therapy sessions
  • New patient: Activates the default settings for new patients
  • Transport setting: Moves the carriage to the transport position
  • Service menu

ARTROMOT-K1 Comfort - Additional features

  • EROM repeat (extension or flexion): Exercises are performed at a higher rate in the end range of motion
  • Stretching (extension or flexion): For gradual and smooth increase of the range of motion
  • Therapy documentation: Graphic representation of the overall treatment cycle
  • EMS control: For an optimal combination of CPM treatment and electrotherapy
  • Workout protocol: Combines various functions of the comfort model in one protocol
  • Comfort protocol: Warm up in the EROM of extension and flexion

ARTROMOT-K1 with Chip Card - Additional features

  • Patient chip card Stores patient-specific therapy parameters
  • Benefits at a Glance
  • Prevents motion-limiting adhesion and joint stiffness (arthrofbrosis)
  • Promotes healing of articular cartilage, tendons, ligaments and soft tissue
  • Improves hematoma/fluid resorption
  • Reduces pain
  • Improves metabolism
  • Reduces length of hospital stay and therapy duration
Weight 11 kg (24.4 lb)
Dimensions 97 x 36 x 23 cm (38.1 x 14.1 x 9.0 in)
Suitable for patient height Approx. 120 – 205 cm
max. permanent load on carriage 25 kg
max. patient weight  Approx. 230 kg

* Dimensions are listed as L x W x H
