Artromot-S4
The ARTROMOT-S4 Continuous Passive Motion shoulder machine is the result of 30 years of experience in the shoulder CPM device business and more than 3 ...
SKU
80.00.084C-INT
Optional Accessories

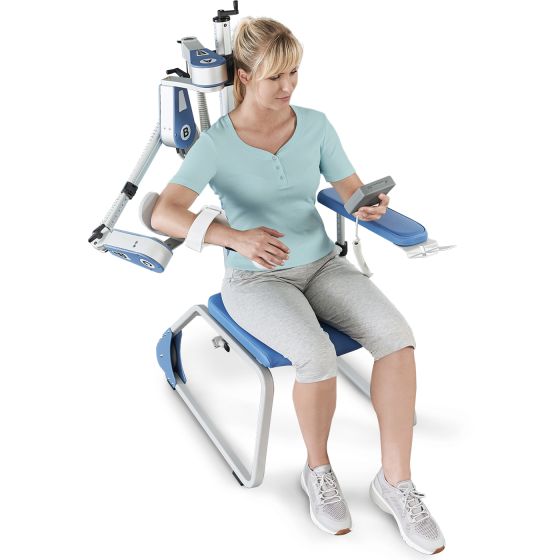

The ARTROMOT-S4 Continuous Passive Motion shoulder machine is the result of 30 years of experience in the shoulder CPM device business and more than 3 years of dedicated engineering, made in Germany.
Backed by three integrated motors, the new model from DJO Global supports the following movements:
- Anteversion & retroversion
- Adduction & abduction
- Internal & external rotation
- Extension & flexion (elevation) with extended or flexed arm
- The combination of these motion axes enables anatomically correct PNF movements as well as the proven "wave" or undulation exercise.
- Combined with the tried-and-tested features, such as the patient chip card and the sturdy design, the new ARTROMOT-S4 has even more therapy options to offer.
- Touchscreen hand controller and motor controls for direct programming of motion ranges, with clear presentation and descriptive icons
- 3 motors for all motion axes: anteversion & retroversion, adduction & abduction, internal & external rotation, extension & flexion (elevation) with extended or flexed arm
- User guidance for easy conversion of the device for treatment of the right or left shoulder * Adaptive load reversal (reverse-on-load feature for patient safety/spasm protection), conforms automatically and sensitivity can be adjusted
- Reinforced armrest with adjustable width and height
| Shipping Dimensions | Box 1: 81 × 68 × 56 cm, 19 kg Box 2: 111 × 39 × 12 cm, 11 kg Box 3: 69 × 54 × 18 cm, 9 kg |
| Electrical Safety Class | II |
| MDD | II a |
| IP class | IP21 |
| Pulse frequency | 1 to 150 Hz |
| MDD | Class IIa |
| IP class | IP22 |
| Applied part | Type B |
| Weight | 28 kg |
| Dimensions | 166 × 100 × 160 cm |
| Adduction/abduction | 0° / 30° / 160° |
| Anteversion/retroversion | 110° / 0° / 10° |
| Elevation (Ex/Flex) | 0° / 30° / 160° |
| Internal/external rotation | 90° / 0° / 90° |
| Isolation | Enables separate exercises in all 3 directions of motion within a single treatment |
| Oscillation | Increases motion frequency in the EROM |
| PNF | Movements following the PNF pattern |
| Stretching | Gently increases the range of motion |
| Wave | Undulating movements resembling a sideways figure eight |
| Applied part | Type B |
| Goniometer accuracy | ±2° |
| Max. continuous load on motion element | 13 kg |
| Max. continuous load on seat | 175 kg |
| Patient height | approx. 120 to 210 cm |
| Adaptive load reversal | 5-100 % of the trigger threshold tolerance range (reverse-on-load feature for patient safety/spasm protection) |
| Cycles | 5-20, adjustment of the Isolation, Oscillation and Stretching repetitions |
| Device setup | Adjustment of the basic settings (e.g., date, time or language) |
| Direction of the undulation | Adjustment of the direction of motion in Wave mode (Undulation) |
| Display mode | Toggles between detailed view and standard view |
| Headrest | For comfortable, optimal patient posture |
| Lockout functions | Locks individual functions, prevents accidental adjustment changes of set parameters and facilitates operation |
| Motor A, B and C ON/OFF | Isolated movements, exclusively abduction/adduction, anteversion/ retroversion, or internal/external rotation |
| Motor controls | For direct range of motion input |
| New patient | Restores the default settings for new patients |
| Patient chip card | For storage of the therapy parameters |
| Pauses | 0-30 seconds |
| Service menu | For service technicians |
| Side conversion | For easy, user guided conversion between right and left shoulder setup |
| Standby | Adjustment of inactive drives in parked position in Isolation mode |
| Therapy documentation | Trend graph of the therapy progress |
| Timer | 1-59 minutes, 1-12 hours / continuous operation |
| Total therapy time | Added sum of all therapy sessions |
| Transport position | Moves the motors to transport position |
| Warm-up protocol | Gradual progression to the maximum range of motion |
