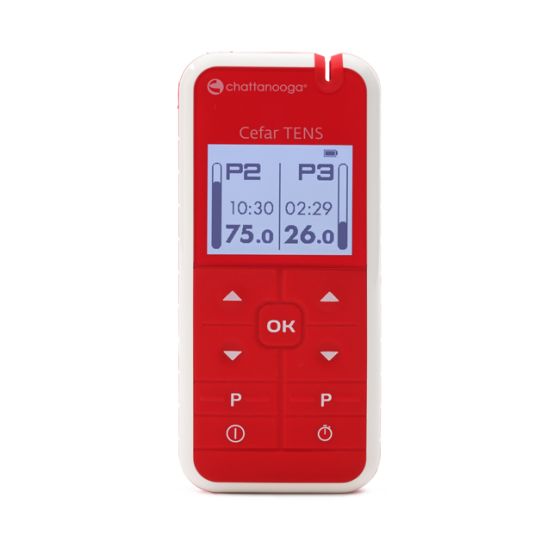

Cefar TENS
Chattanooga’s Cefar® TENS is our next generation of handheld TENS device, building on the established technology of the Primo Pro with added features to combine TENS and NMES treatments in one portable unit.
Intended for use by both healthcare professionals and patients, the Cefar® TENS combines TENS with NMES to bring pain relief and muscle rehabilitation from the clinic to the home.
Patients can begin treatment with the device in a clinical environment under the supervision of a healthcare professional, before continuing their rehabilitation in the comfort of their own home.
Simple and easy to use, with a range of compliance features, patients can be confident about taking their treatment into their own hands while their clinician can easily set parameters and monitor their progress.
For healthcare professionals this equals faster recovery times and shorter stays for patients, less pressure on resources, and less use of analgesics, therefore patients can benefit from reduced pain, increased mobility, and greater independence.
Altogether, Cefar® TENS is more than just a pain machine.
INDICATIONS: TENS
- Symptomatic relief and management of chronic, intractable pain
- Adjunctive treatment for post-surgical and post-trauma acute pain
- Relief of pain associated with arthritis NMES
- Retarding or preventing disuse atrophy
- Maintaining or increasing range of motion
- Re-educating muscles Increasing local blood circulation
- Relaxation of muscle spasms
- Increasing local blood circulation
1+1 Function
- The Cefar® TENS stimulator features 2 independent channels that can be managed separately. Users can select either the same program on both channels or 2 different programs to be used simultaneously, allowing a combination of NMES and TENS in one treatment. This means patients can rehabilitate the affected area while reducing the associated pain, resulting in a more comfortable and effective treatment.
Program mode
- The device allows users to create up to 5 custom programs and to select specific parameters. This gives clinicians the ability to prescribe an initial treatment regime that patients can be confident in using, while still allowing room for future modification.
Electrodes
- For best results when using the Cefar® TENS, we recommend the use of Chattanooga electrodes. Available in 2 different sizes, our electrodes provide excellent conductivity and ensure comfortable and effective treatment.
Compliance Clinicians can easily keep track of patients’ home treatments by monitoring how many hours of usage since the device was reset, along with total device usage.
The device also features a locking function to ensure the patient will only use the appropriate program.
Rotatable belt clip
- When connected to the belt clip, the device can be rotated to allow convenient access to the cable outputs
Acupuncture mode
- When connected to acupuncture needles, Cefar® TENS can be used to deliver electroacupuncture (EA) treatment. As EA has been shown to be particularly effective in the reduction of pain, this provides a further, more beneficial option for patients to reduce their discomfort.
- Clinician use only. Acupuncture needles not supplied.
- User Manual Cefar TENS
- Practical Guide Cefar TENS
- Set of 2 pin cables Cefar TENS
- Necklace and clip for Cefar TENS
- Flippable belt clip for Cefar TENS
- Transportation pouch for Cefar TENS
| Electrical Safety Class | Class IIa |
| Channels | Two independent and individually adjustable channels that are electrically isolated from each other |
| Maximum electrical charge per pulse | 80 micro coulombs (2 × 40 μC, compensated) |
| Constant current | 0 to 99 V in 1 V increments for Constant Voltage mode for electrostimulation (5V for first setup). 0,1 mA – 30mA steps 0,1 mA for electroacupuncture |
| Maximum pulse intensity | 99.5 mA in Constant Current mode or 99 V in Constant Voltage mode for neurostimulation |
| 30 mA Pulse width | 60 to 400 μs |
| Pulse frequency | 1-120 Hz |
| Applied part | Type BF |
| Battery | Lithium Polymer (Li-Po) rechargeable battery |
| Dimensions | 132 x 60 x 24 mm |
| Weight | 156g |
| Maximum electrical charge per pulse | 80 micro coulombs (2 × 40 μC, compensated) |
| Applied part | Type BF |
| Maximum electrical charge per pulse | 80 micro coulombs (2 × 40 μC, compensated) |
| Pulse intensity increments | Manual adjustment of stimulation intensity from 0 to 99 mA in minimum increments of 0.5 mA for Pulse width: 60 to 400 μs. |
