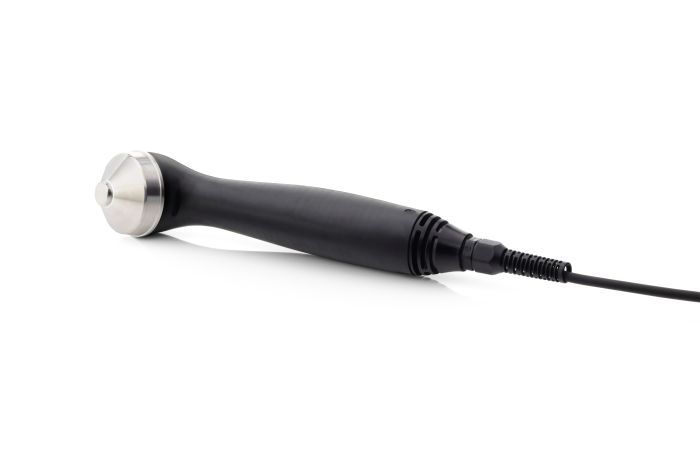

1 cm² Ultrasound applicator Intelect Mobile 2
New Ultrasound Applicator
Ergonomic design fit for the hand
Improved coupling detection and monitoring
SKU
15-0140-UK
New Ultrasound Applicator
- Ergonomic design fit for the hand
- Improved coupling detection and monitoring
|
Ultrasound applicator Frequency |
1cm² | 2cm² | 5cm² | |||
| 1MHz | 3MHz | 1MHz | 3MHz | 1MHz | 3MHz | |
| Effective Radiating Area ERA INTL (cm²) | 1 | 0.9 | 1.5 | 1 | 2.5 | 2.7 |
| Max Output power in Continuous mode | 2W | 1.8W | 3W | 2W | 5W | 5.4W |
| Max Output power in Pulsed mode | 3W | 2.7W(*) | 4.5W | 3W | 7.5W | 8.1W |
| Max Amplitude in Continuous mode | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² | 2W/cm² |
| Max Amplitude in Pulsed mode | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² | 3W/cm² |
