ARTROMOT-E2
Indicated in the post-op treatment and rehab process of various elbow and arm conditions, the ARTROMOT-E2 offers many useful features, such as the patient chip ...
Only %1 left
SKU
80.00.03xE2-UK

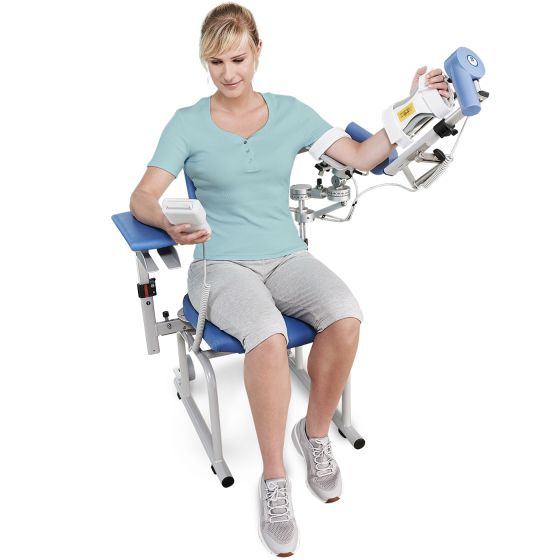

Indicated in the post-op treatment and rehab process of various elbow and arm conditions, the ARTROMOT-E2 offers many useful features, such as the patient chip card, the easy swift conversion, the anatomically correct motion (PNF pattern), and the forearm placement on a carriage with automatic length adjustment and sandwich straps.
INDICATIONS
- Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrolysis
- Surgical treatment of fractures and pseudoarthrosis
- Exercise-stable osteosynthesis
- Endoprosthetic implants
- Treatment following mobilization of joints in anesthetized patients
- Reconstructive surgery of biceps tendons
- Operations on soft tissue in the joint area
Range of Motion Extension/flexion -5° / 0° / 140°
Pronation/supination 90° / 0° / 90°
ARTROMOT-E2 - Features
- Motor control: ON/OFF for isolated motion extension/flexion or pronation/supination
- Synchronized motors: ON = PNF-like motion pattern / OFF = Randomised, asynchronised motion
- Speed: 1% - 100%
- Timer: 1 – 59 min/1 – 24h/continuous operation
- Pauses: 1 – 59 s/ 1 – 59 min
- Reverse on load in steps (motor A and B separately): 1 - 25/patient safety feature
- Total therapy time: Added sum of the therapy sessions
- Warm up protocol: For gradual progression to the maximum range of motion
- Patient chip card: For storage of the therapy parameters
- New patient: Activates the default settings for new patients
- ISO Motion protocol: For separate exercising in both directions
- EROM Repeat (EX/PRO – FLEX/SUP): Higher rate of motion in the EROM
- Stretching (EX – FLEX – PRO – SUP): Careful and smooth increase of the range of motion
- Therapy documentation: Graphic presentation of the overall treatment cycle
- Key lock function: Prevents accidental changes of the parameter settings
- Transport setting: Moves the motors into the transport position
- Service menu
ARTROMOT-E2 Dimensions
| Weight | 28.7 kg (63.2 Ib) |
| Dimensions | 87.5 x 57.5 x 58 cm (34.4 x 22.6 x 22.8 in) |
| Suitable for patient height | Approx. 120 – 210 cm |
| max. permanent load on carriage | 9 kg |
| max. permanent load on chair | 150 kg |
ARTROMOT-E2 Compact Dimensions
| Weight | 17 kg (37.4 Ib) |
| Dimensions | 87.5 x 57.5 x 29 cm (34.4 x 22.6 x 11.4 in) |
| Suitable for patient height | Approx. 120 – 210 cm |
| max. permanent load on carriage | 9 kg |
* Dimensions are listed as L x W x H
