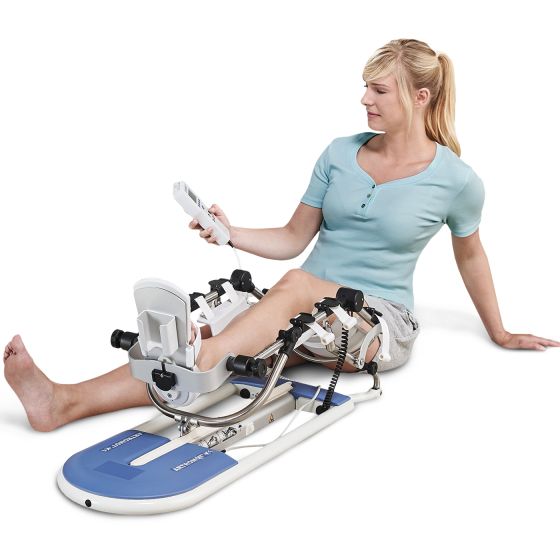

ARTROMOT-K1

Range of Motion Extension/Flexion

• Knee -10° / 0° / 120°
• Hip 0° / 7° / 115

ARTROMOT-K1 Classic - Features

• Pauses (extension and flexion): 0 - 59 s / 1 - 59 min
• Speed: 5% - 100 %
• Key lock function: To prevent accidental changes of the parameter settings

ARTROMOT-K1 Standard - Additional features

• Timer 1 - 59 minutes / 1 - 24 hours / continuous operation
• Pauses (extension and/or flexion) 0 - 59 seconds / 1 - 59 minutes
• Reverse on load in steps 1 - 25 / patient safety feature
• Warm up protocol: Gradual progression to the maximum range of motion
• Total therapy time: Added sum of the therapy sessions
• New patient: Activates the default settings for new patients
• Transport setting: Moves the carriage to the transport position
• Service menu

ARTROMOT-K1 Comfort - Additional features

• EROM repeat (extension or flexion): Exercises are performed at a higher rate in the end range of motion
• Stretching (extension or flexion): For gradual and smooth increase of the range of motion
• Therapy documentation: Graphic representation of the overall treatment cycle
• EMS control: For an optimal combination of CPM treatment and electrotherapy
• Workout protocol: Combines various functions of the comfort model in one protocol
• Comfort protocol: Warm up in the EROM of extension and flexion

ARTROMOT-K1 with Chip Card - Additional features

• Patient chip card Stores patient-specific therapy parameters
• Benefits at a Glance
• Prevents motion-limiting adhesion and joint stiffness (arthrofbrosis)
• Promotes healing of articular cartilage, tendons, ligaments and soft tissue
• Improves hematoma/fluid resorption
• Reduces pain
• Improves metabolism
• Reduces length of hospital stay and therapy duration
