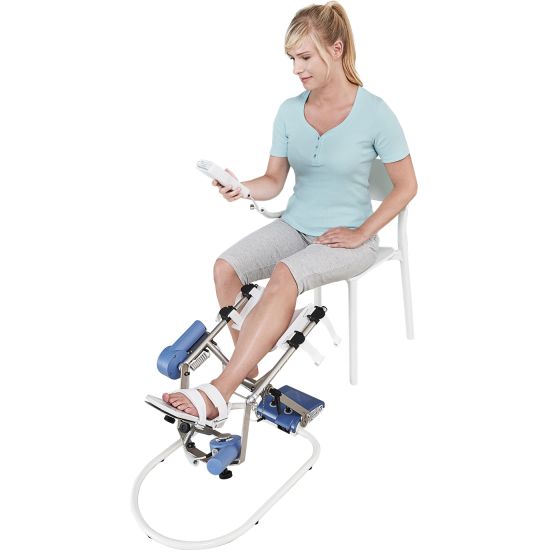

ARTROMOT-SP3

ARTROMOT-SP3 offers anatomically correct motions (PNF pattern). Using the ARTROMOT-SP3 is made easy by intuitive operation of the handheld programming unit with self-explanatory symbols. ARTROMOT-SP3 optimizes ease-of-use ...
Learn More
Only %1 left
SKU
80.00.03xSP3-UK
Request a Quote

ARTROMOT-SP3 offers anatomically correct motions (PNF pattern).

Using the ARTROMOT-SP3 is made easy by intuitive operation of the handheld programming unit with self-explanatory symbols.

ARTROMOT-SP3 optimizes ease-of-use through simple mechanical settings and offers easy to disinfect leg support and footrest.

INDICATIONS

  • Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrolysis
  • Surgical treatment of fractures and pseudoarthrosis
  • Exercise-stable osteosynthesis
  • Operations on soft tissue in the joint area
  • Reconstructive ligament and tendon surgery
  • Operations on cartilage lesions
  • Achilles tendon reconstruction
Features & Benefits

Range of Motion

Plantar flexion / Dorsal extension 50° / 0° / 40°

Inversion / Eversion 40° / 0° / 20°

ARTROMOT-SP3 Standard - Features

  • Timer: 1 - 59 minutes / 1 - 24 hours / continuous operation
  • Pauses: 0 - 59 seconds
  • Speed: 5 % - 100 %
  • Reverse on load in Steps (motor A and B separately): 1 - 25 / patient safety feature
  • Motor control: ON/OFF for isolated motion of motor A and B, plantar flexion/dorsal extension or inversion/eversion
  • Synchronized motors: ON = PNF-like motion pattern / OFF = Randomised, asynchronised motion
  • Total therapy time: Added sum of the therapy sessions
  • New patient: Activates the default settings for new patients
  • Transport setting: Moves the motors into the transport position
  • Patient chip card (Optional): Stores patient-specifc therapy parameters
  • Key lock function: Prevents accidental changes of the parameter settings
  • Service menu

ARTROMOT-SP3 Comfort - Additional features

  • Stretching modes: For gradual and smooth increase of the range of motion
  • Therapy documentation: Graphic presentation of the overall treatment cycle
  • Warm-up protocol: Gradual progression to the maximum range of motion
  • ISO protocol: For separate exercising in both directions
Technical Specs
Weight 11 kg (24.4 Ib)
Dimensions 78x42x39.5cm
Suitable for height Approx. 120 – 210 cm
Max.permanent load on carriage 20 kg
Max. patient weight 200 kg
