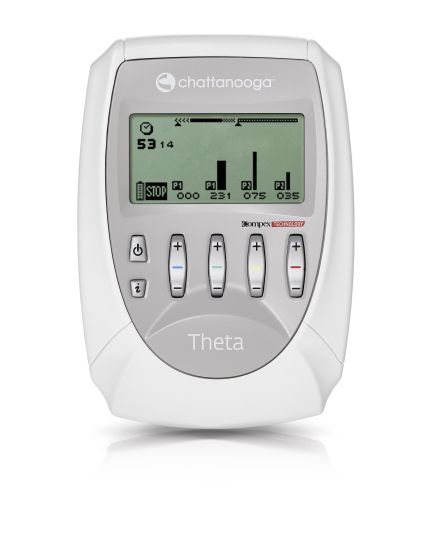

Theta
Control your sessions of electrotherapy
THETA is a 4 channels stimulators developed to treat both standard (Pain, NMES) and specific protocols in rehabilitation, especially when triggered ...
SKU
2534815-UK
Optional Accessories
Control your sessions of electrotherapy
THETA is a 4 channels stimulators developed to treat both standard (Pain, NMES) and specific protocols in rehabilitation, especially when triggered or co-contractions are requested. Neurology (Spasticity, Hemiplegic foot, Agonist-Antagonist) or specific pathologies like Post ACL Ligamentoplasty are protocols provided by the unit.
Please note this product is available in select international markets; it is not available in the U.S. Contact us for more details.
Programmes
- 4 standard + 4 Full programmes categories:
- Rehabilitation I&II
- Pain Relief I&II
- Vascular
- Neurologic Rehabilitation
- Conditioning I&II
Full programme configuration
MUSCLE INTELLIGENCE TECHNOLOGY
- 4 functions on all 4 channels: Mi- Scan, Mi-Tens, Mi-Range, Mi-Action (Active session with a voluntary contraction detected by the device to start the stimulation). 2 Mi-Cables included.
2+2
- Choose one programme for channel 1 and 2, and then select another programme from the 2+2 programme list for channel 3 and 4. This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.
TRIGGER FUNCTION
- Start the stimulation on demand by pressing a trigger button when needed (Hemiplegic foot, spasticity…)
SKIP
- Manage the session time and move directly to the next phase (recovery) when needed.
MOTOR POINT PEN
- This very useful tool in combination with the dedicated programme helps to ensure the optimal electrode placement.
PROGRAMMABILITY
- Creates and personalizes programmes in order to customize the patient-specific parameters.
DETAILED PRACTICAL GUIDE
- Guidelines and treatment recommendations, as well as technical parameters for all programmes included in the stimulator, are provided. On the fold out cover there are illustrations of the suggested electrode placements
AUTONOMY AND SPEED RECHARGE
- Daily use autonomy and with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours.
WARRANTY
- The warranty is for 3 years from the date of purchase.
WAVE FORM
- Symmetrical biphasic 100% compensated
- Set of 4 pin cables
- Transportation pouch
- Protecting cover
- Belt clip
- Snap adaptor kit
- User manual and practical guide on CD/USB
- Mi cables (x2)
- Battery pack for Rehab, Theta, Physio
- Dura-Stick® Plus 5 x 10 cm cloth - double mi-snap (2 pack)
- Dura-Stick® Plus 5 cm (2”) cloth, mi-snap
- Quick start guide + warning leaflet
- Electrode placement leaflet
- Bottle of gel 250 ml
- Fast Charger Rehab - Theta - Physio
Channels | 4 |
Constant Current | Up to a resistance of Max 1300 Ohm/channel |
Maximum pulse intensity | 120 mA |
Pulse width | 30 to 400 μs |
Pulse frequency | 1 to 150 Hz |
MDD | Class IIa |
IP class | IP22 |
Applied part | Type BF Comply with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10 |
Battery | 941213: Nickel metal hydride (NiMH) 4.8 V 2000 mA/h |
Dimensions | 138x95x33mm |
Weight | 300g (battery included) |
Dimensions | 138x95x33mm |
