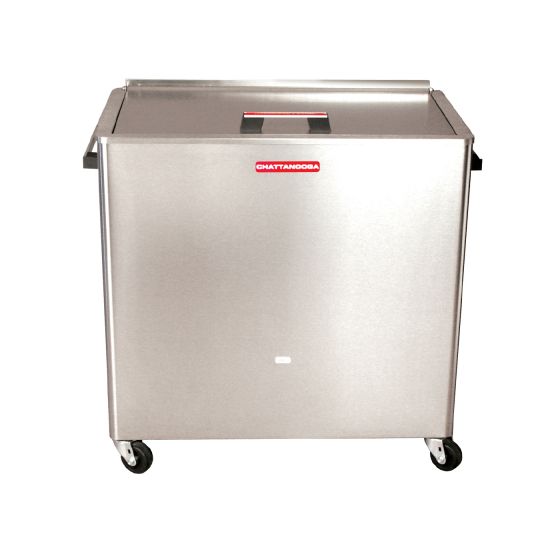

Hydrocollator M-4 Mobile Heating Unit
Hydrocollator Heating Units. Our flagship product is the standard all others can only hope to match. Durable and easy to maintain, these high-quality stainless steel ...
Only %1 left
SKU
2502-M4-US
Hydrocollator Heating Units. Our flagship product is the standard all others can only hope to match. Durable and easy to maintain, these high-quality stainless steel units give you a constant supply of temperature-consistent HotPacs.
- High-quality stainless steel
- Thermostatically controlled temperature
- 3" (8 cm) swivel-type rubber casters for silent, friction-free movement
- Easy maintenance. Simple to fill and drain. No plumbing required: uses 110 current, 12.5 amp
- One-year warranty
- Full fiberglass insulation on mobile units to ensure minimum energy use and prevent heat loss
- Requires just 20" by 32" floor space
- Extra large tank
- Oversized drain
- Inside racks
- A second thermostat guards against low water level and overheating
- Comes complete with 24 Standard Size Hydrocollator Moist Heat Steam Packs
| Mains Power | -110~120 V 50/60 Hz |
| Power Consumption | 1500W |
| Product Weight | 132 lb (60 kg) |
| Shipping Weight | 160 lb (65 kg) |
| Dimensions | 35"L x 20"W x 33"H (89 cm x 51 cm x 84 cm) |
| Electrical Safety Class | Class 1, Type B |
| Safety Tests | Conforms to UL 60601-1, certified to Can/CSA C222 No. 601.1 |
| Tank Capacity (approx. with HotPacs) | 27 gal (102 L) |
| Temperature Range | 160° - 165°F (71° - 74°C) |
| Thermal Cut-Out Temperature | 180° - 185°F (82° - 85°C) |
| Temperature Accuracy | +/- 10% |
| Heat Up Time to 160°F (71°C) | 8 Hrs |
| Cool Down Time from 160°F (71°C) | 4 Hrs |
| Fiberglass Insulation | Yes |
| M-2 | M-4 | SS-2 | E-2 | E-1/E-1 MHT | |
| Tank Capacity | 14 gal | 27 gal | 10 gal | 8 gal | 3 gal |
| Temperature Range | 160° - 165°F | 160° - 165°F | 160° - 165°F | 160° - 165°F | 160° - 165°F |
| Thermal Cut-Out Temp. | 180° - 185°F | 180° - 185°F | 180° - 185°F | 180° - 185°F | 180° - 185°F |
| Temperature Accuracy | +/-10% | +/-10% | +/-10% | +/-10% | +/-10% |
| Heat up Time to 160° F | 6 Hours | 8 Hours | 4 Hours | 4 Hours | 2 Hours |
| Cool Down Time from 160°F | 3 Hours | 4 Hours | 4 Hours | 2 Hours | 1 Hour |
| Fiberglass Insulation | Yes | Yes | Yes | No | No |
