VIEW

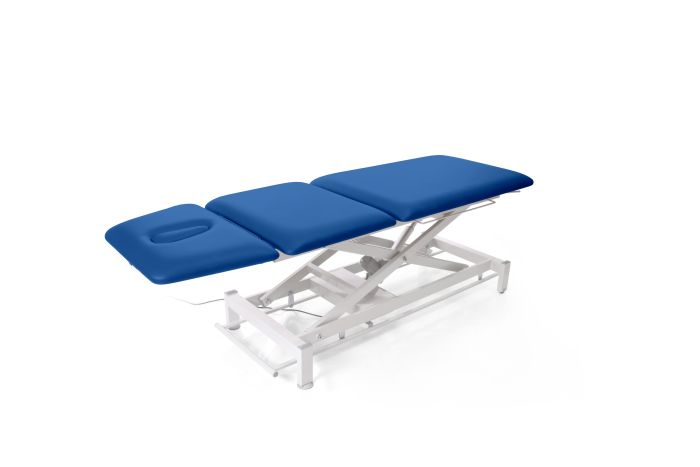

313GAL-INT
Optional Accessories
- Adjustable head section from +40 to -70 with gas spring
- Easy access foot switch, accessible from any position around the table 360°, for simple height adjustment
- Face hole on head section with removable face hole cover
- Two-layer padding with non-flammable, bio-compatible and scratchproof upholstery in many colours
- Powder coated, stable scissor steel frame
- 2 side brackets for fixation of stabilization belts and elastic bands
- Traction support sleeves
- Personal Authorization System with 2 safety magnetic keys
- Hallotronic System electric high/low height adjustment from 52 to 102 cm with capacity up to 200 kg
- Non-slip rubber feet with 1 cm height adjustment allowing levelling of the table
2 types of frame:
- 2 small wheels and 2 legs
- 4 directional castors with central brake and 4 legs
Electrical
| Mains Power: | 100 - 240 Volt 50/60 Hz |
| Standby Consumption: | max. 1 A |
| Weight: | Standard 87kg/4 Castors 99 kg |
| Shipping Weight: | Table Weight + 50 kg |
| Shipping Dimensions: | 220 cm x 85 cm x 77 cm |
| Lifting Capacity: | 200 kg |
| Height Adjustment: | 52 - 102 cm |
| Electrical safety class: | Class II, Type B |
Hydraulic Pump
| Weight | Standard 88 kg/ 4 Castors 97 kg |
| Shipping Weight: | Table weight + 50 kg |
| Shipping Dimensions: | 220 cm x 85 cm x 77 cm |
| Lifting Capacity: | 200 kg |
| Height Adjustment: | 51 - 96 cm |
