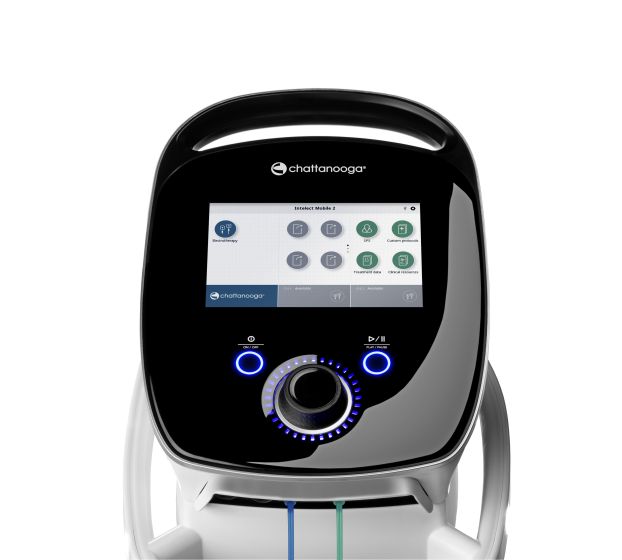

Intelect Mobile 2 Stim
Intelect Mobile 2 takes electrotherapy to the next level. The Mobile 2 comes in multiple configurations: electro stimulation only, ultrasound only or a combo device ...
SKU
15-1202-INT
Optional Accessories
Intelect Mobile 2 takes electrotherapy to the next level. The Mobile 2 comes in multiple configurations: electro stimulation only, ultrasound only or a combo device that combines both modalities.
Intelect Mobile 2 STIM
- The Intelect® Mobile 2 STIM is an electrotherapy system used with or without an optional cart, allowing for the inclusion of a Vacuum module
- The Intelect Mobile 2 stim has available a selection of widely used waveforms allowing the therapist multiple treatment options
- These waveforms are easily selected from the user interface and guidelines as to electrode placement are also given for the selected treatment area
- This equipment is to be used only under the prescription and supervision of a licensed medical practitioner
The intuitive user interface, quick access buttons and preset protocols means the Mobile 2 is both simple and effective for therapy delivery. The optional built in battery makes the Intelect Mobile 2 a truly mobile option
Indiciations:
TENS
- Symptomatic relief of chronic pain
- Management of post-operative pain
NMES
- Muscle re-education
- Increasing local blood supply
- Relaxation of muscle spasms
- Maintaining/Increasing range of motion
KEY FEATURES
- Full colour 7" high resolution touch screen
- Upgradable software : future proof technology
- Import / Export capability (Bluetooth)
- Treatment data storage
- Ergonomic design
- Lightweight and mobile with ergonomically designed handle
- Optional custom carry case available for safe and secure transport
- Optional cart with storage drawers and large wheels
- Home use: compliant with IEC 60601-1-11, can be used for treatment in the patients' home
KEY FEATURES - INTERFACE
- Intelligent interface with touch buttons and interactive lights indicating status of device or port
- Suggested Protocol Setting (SPS): built in suggested protocols based on currently available clinical evidence
- Anatomical library with hi resolution images for patient explanation
- Custom protocols can be stored
WAVEFORMS
- Interferential current (Traditional IFC, 4-pole)
- Premodulated IFC (2-pole)
- Asymmetrical Biphasic current - TENS
- Symmetrical Biphasic current - TENS
- VMS
- High Voltage Pulsed Current (HVPC)
- Isoplanar
- Dipole
- VMS Burst
- VMS FR
- Monophasic Triangular Pulsed
- Monophasic Rectangular Pulsed
- Galvanic
- Galvanic Interrupted
- Low Level Galvanic
- Russian
- Träbert
- Han Stimulation
- Microcurrent
- Diadynamic LP, MF, DF, Cpid/Cpiso
- Surged Monophasic Triangular
- Surged Monophasic Rectangular
- 6x8 cm Carbon Electrodes (QTY 4)
- Stim Ch 1/2 Leadwire Kit
- Dura-StickĀ® Plus 5 cm (2ā) cloth, square
- USB Drive Intelect Mobile 2
- Printed Quick Start Guide Mobile 2
- Chattanooga Straps
- Power cord EU Intelect Mobile 2
General
| Main input voltages | 100-240V AC, 1.0 to 0.42A, 50/60Hz |
| Electrical Class | Class II |
| Mode of operation | Continuous |
| Dimensions / Weight (no battery, excluding cart) | 340 x 355 x 150 mm / 3.1 Kg |
| Conformity | This device complies with the applicable standards EN/IEC 60601-1 and 60601-1-11, CAN/CSA-C22.2 No.601.1, UL Std. No 60601-1 |
| CE 2797 | Classification according to MDD : class IIa device 93/42 60601-1 |
| Legal manufacturer | DJO France SAS - CE 2797 |
Electrical Type (Degree of protection)
| ELECTROTHERAPY | Type BF |
| ELECTROTHERAPY VACUUM | Type BF |
Vacuum
| POWER INPUT | 0-25 Vdc, maximum peak current 4A |
| ELECTRICAL TYPE | Type BF |
| VACUUM RANGE | 0 to 600 mbar maximum +/-5% |
| VACUUM MODES |
Continuous or Pulsed Continuous |
