Intelect® Neo Ultrasound Module (without applicator)

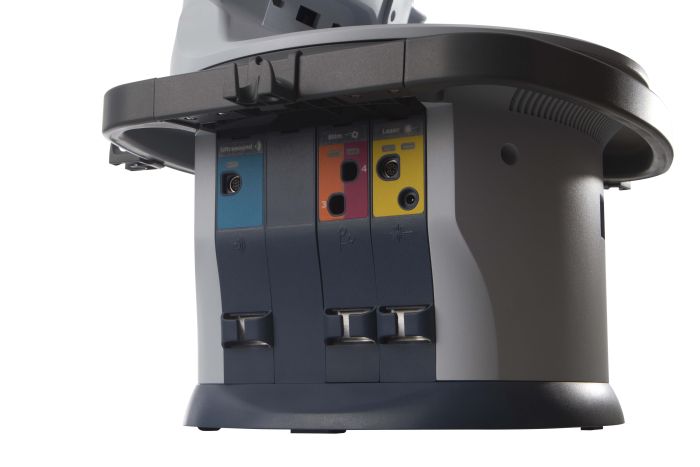

An module Ultrasound designed specifically for the Intelect Neo Therapy System.
The Ultrasound module fully integrates with the Neo’s advanced features such as the Clinical Protocol ...
SKU
70002-INT
Optional Accessories
An module Ultrasound designed specifically for the Intelect Neo Therapy System.
The Ultrasound module fully integrates with the Neo’s advanced features such as the Clinical Protocol Setup (CPS) system.
Works with the electrotherapy module/s to create a wide range of combination therapy protocol options
- 1 and 3 MHz frequencies
- Pulsed and continuous therapy operation (10%, 20%, 50% and 100%)
- Variable duty cycle outputs of 16 Hz, 48 Hz, or 100 Hz
- Clinical indications provide the most appropriate application and parameter set for the patient’s condition
- Ergonomically designed sound heads in a variety of sizes (Small, Medium and Large)
- All sound heads are interchangeable due to Electronic Signature™ residing on all transducers
- Head warming feature and head contact control with visual and auditory feedback on all sound heads
- 3-year warranty (accessories 1 year)
- Intelect® Neo Modules User Manual on CD
- Intelect® Neo Ultrasound Module User Manual
| Main Power | 100-240 VAC- 1.0 A, 50/60 Hz |
| Electrical Safety Class | Class 1, Type B |
| Safety Tests | IEC 60601-1, IEC 60601-1-2, IEC 60601-2-5 |
| Dimensions | Module only: 28 x 16 x 3 cm |
| Weight | Module only: 0.5 kg |
- Physical Medicine Modalities Catalog (2018 Rev O)
- Intelect Neo Brochure (2013)
- Intelect Neo Ultrasound Module (without Applicator) Instructions for Use - English (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) 用戶手冊 - 中文 (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Uživatelská příručka - Čeština (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Betriebsanweisung - Deutsch (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Manual de Usario - Español (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Manuel d'Utilisateur - Français (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Εγχειρίδιο Χρήστη - Ελληνικά (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Manuale Utente - Italiano (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) 使用説明書 - 日本語 (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Gebruikershandleiding - Nederlands (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Podręcznik użytkownika urządzenia - Polski (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Manual do usuário - Português (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Manual de utilizare - Romanian (13-8911 - Rev E 2017)
- Intelect Neo Ultrasound Module (without Applicator) Руководство пользователя - Русский (13-8911 - Rev E 2017)
