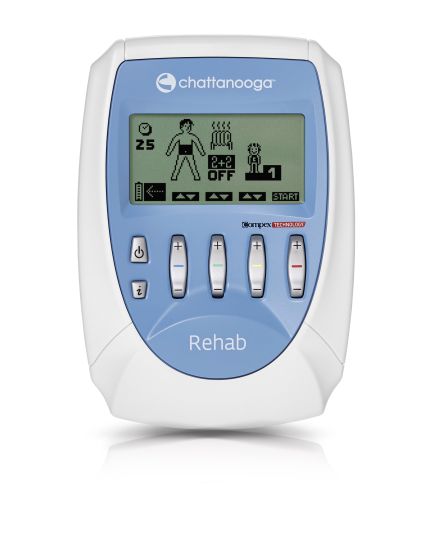

A standard for Rehabilitation REHAB is a 4 channels stimulator developed for PTs and Rehab Clinics requesting a standard way of use of electrostimulation.
It meets all of the requirements a professional demand: pain management, treatment of vascular diseases, and muscle stimulation with basic programs.
Please note this product is available in select international markets; it is not available in the U.S. Contact us for more details.
Programmes 4 standard programmes categories:
- Rehabilitation I
- Pain Relief I
- Vascular Conditioning I
- Standard programme configuration
MUSCLE INTELLIGENCE TECHNOLOGY
- Mi-Ready (integrated Mi Technology on all 4 channels, but Mi-Cable not included) – 4 functions: Mi- Scan, Mi-Tens, Mi-Range, Mi-Action.
- Choose one programme for channel 1 and 2, and then select another programme from the 2+2 programme list for channel 3 and 4.
This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.
- Manage the session time and move directly to the next phase (recovery) when needed.
MOTOR POINT PEN
- This very useful tool in combination with the dedicated programme helps to ensure the optimal electrode placement.
- Creates and personalizes programmes in order to customize the patient-specific parameters.
DETAILED PRACTICAL GUIDE
- Guidelines treatment recommendations and technical parameters for all programmes included in the stimulator are provided.
On the fold out cover there are illustrations of the suggested electrode placements
AUTONOMY AND SPEED RECHARGE
- Daily use autonomy and with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours.
- The warranty is for 3 years from the date of purchase.
- Symmetrical biphasic 100% compensated
The physiotherapy unit is indicated in the treatment of most musculoskeletal injuries and diseases as well as in postoperative treatment after joint surgeries and in the treatment of several pain indications. Examples:
As an NMES device, indications are for the following conditions:
- Retarding or preventing disuse atrophy
- Maintaining or increasing range of motion
- Re-educating muscles
- Relaxation of muscle spasms
- Increasing local blood circulation
As a TENS device, indications are for the following conditions:
- Symptomatic relief and management of chronic, intractable pain
- Adjunctive treatment for post-surgical and post-trauma acute pain
- Relief of pain associated with arthritis.
As a pulsed current device, indications are for the following conditions:
- Reduction of edema (under negative electrode)
- Reduction of muscle spasm
- Influencing local blood circulation (under negative electrode)
- Retarding or prevention of disuse atrophy
- Facilitation of voluntary motor function
- Maintenance of increase of range of motion
- Set of 4 pin cables
- Transportation pouch
- Protecting cover
- Belt clip
- Motor Point Pen
- Snap adaptor kit
- User manual and practical guide on CD/USB
- Battery pack for Rehab, Theta, Physio
- Fast Charger Rehab - Theta - Physio
- Dura-Stick® Plus 5 x 10 cm cloth - double mi-snap (2 pack)
- Dura-Stick® Plus 5 cm (2”) cloth, mi-snap
- Quick start guide + warning leaflet
- Electrode placement leaflet
- Bottle of gel 250 ml
|Constant Current||Up to a resistance of Max 1300 Ohm/channel|
|Maximum pulse intensity||120 mA|
|Pulse width||30 to 400 μs|
|Pulse frequency||1 to 150 Hz|
|Applied part||Type BF Comply with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10|
|Battery||941213: Nickel metal hydride (NiMH) 4.8 V 2000 mA/h|
|Weight||300g (battery included)|
