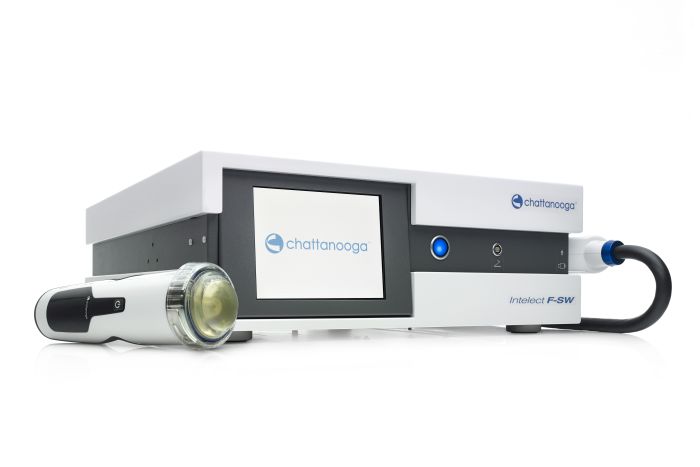

Intelect® Focus Shockwave
Greater Power & Depth for Better Treatment
The Intelect® Focus Shockwave offers state-of-the-art Extracorporeal Shockwave Therapy (ESWT).
In ESWT a wave is produced by a small explosion ...
SKU
21090-UK
Optional Accessories
Greater Power & Depth for Better Treatment
The Intelect® Focus Shockwave offers state-of-the-art Extracorporeal Shockwave Therapy (ESWT).
In ESWT a wave is produced by a small explosion generated underwater inside an 'applicator.'
This wave is focused through a lens and transmitted into the tissue.
This focused shockwave can be electromagnetically generated; it has high energy, around one hundred times more powerful than a Radial Pressure Wave, making it optimum for a range of conditions in urology, orthopaedic indications, cardiology and neurology.
Deep therapy regions can be treated safely and reliably with focused shock waves.
The large focal zone provides enhanced targeting precision.
- Closing ring transparent for stand-off I and II
- F-SW Handpiece
- Silicone oil
- Stand-off I (30 mm)
- Stand-off II (15 mm)
- Water bag Focus Shock Wave
- Ultrasound gel bottle - 250 ml
| Electrical Safety Class | Class IIb |
| IP class | IPX1 |
| Dimensions | 450 x 165 x 530 mm (W x H x D) |
| Remote Control Weight | 770 g |
| Module Weight | 22.1 kg |
| Ambient temperature during storage and transport | in steps from 0.01 to 0.55 mJ/mm2 |
F-SW operating mode
| F-SW | Single shock, continuous shock 1–8 Hz |
| Mains frequency | 50 / 60 Hz |
| Mains Fuse | T5AL/250 VAC |
| Mains input voltage | 100 – 240 VAC |
| Power consumption | max. 450 VA |
| Ambient air pressure during operating | 800 – 1060 hPa |
| Ambient pressure during storage and transport | 500 – 1060 hPa |
| Ambient temperature during operation | 0 – 60 °C frost free |
| Ambient temperature during storage and transport | 10 – 30 °C |
| Air humidity | 5 – 95%, non-condensing |
| F-SW handpiece weight | 770 g |
| MDD | Class IIb |
