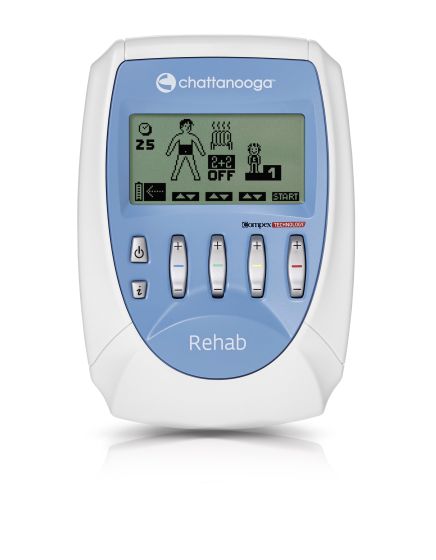

Rehab

A standard for Rehabilitation REHAB is a 4 channels stimulator developed for PTs and Rehab Clinics requesting a standard way of use of electrostimulation. It meets ...
SKU
2533115-UK

A standard for Rehabilitation REHAB is a 4 channels stimulator developed for PTs and Rehab Clinics requesting a standard way of use of electrostimulation.

It meets all of the requirements a professional demand: pain management, treatment of vascular diseases, and muscle stimulation with basic programs.

Please note this product is available in select international markets; it is not available in the U.S. Contact us for more details.

Programmes 4 standard programmes categories:

  1. Rehabilitation I
  2. Pain Relief I
  3. Vascular Conditioning I
  4. Standard programme configuration

MUSCLE INTELLIGENCE TECHNOLOGY

  • Mi-Ready (integrated Mi Technology on all 4 channels, but Mi-Cable not included) – 4 functions: Mi- Scan, Mi-Tens, Mi-Range, Mi-Action.

2+2

  • Choose one programme for channel 1 and 2, and then select another programme from the 2+2 programme list for channel 3 and 4.

This allows treatment of two different body parts, or two patients simultaneously, or combines NMES and TENS as one treatment.

SKIP

  • Manage the session time and move directly to the next phase (recovery) when needed.

MOTOR POINT PEN

  • This very useful tool in combination with the dedicated programme helps to ensure the optimal electrode placement.

PROGRAMMABILITY

  • Creates and personalizes programmes in order to customize the patient-specific parameters.

DETAILED PRACTICAL GUIDE

  • Guidelines treatment recommendations and technical parameters for all programmes included in the stimulator are provided.

On the fold out cover there are illustrations of the suggested electrode placements

AUTONOMY AND SPEED RECHARGE

  • Daily use autonomy and with the charger included in the kit, a full cycle of recharging will take a maximum of 2.5 hours.

WARRANTY

  • The warranty is for 3 years from the date of purchase.

WAVE FORM

  • Symmetrical biphasic 100% compensated
  • Set of 4 pin cables
  • Transportation pouch
  • Protecting cover
  • Belt clip
  • Snap adaptor kit
  • User manual and practical guide on CD/USB
  • Battery pack for Rehab, Theta, Physio
  • Dura-Stick® Plus 5 x 10 cm cloth - double mi-snap (2 pack)
  • Dura-Stick® Plus 5 cm (2”) cloth, mi-snap
  • Quick start guide + warning leaflet
  • Electrode placement leaflet
  • Bottle of gel 250 ml
  • Fast Charger Rehab - Theta - Physio
Channels 4
Constant Current Up to a resistance of Max 1300 Ohm/channel
Maximum pulse intensity 120 mA
Pulse width 30 to 400 μs
Pulse frequency 1 to 150 Hz
MDD Class IIa
IP class IP22
Applied part Type BF Comply with safety tests: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10
Battery 941213: Nickel metal hydride (NiMH) 4.8 V 2000 mA/h
Dimensions 138x95x33mm
Weight 300g (battery included)
Dimensions 138x95x33mm
