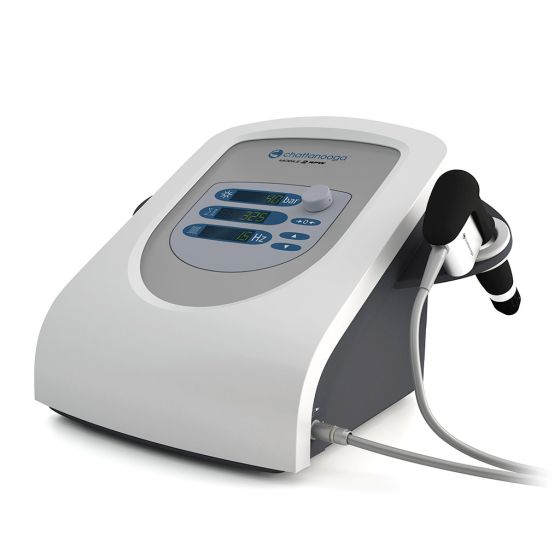

The Intelect® Mobile 2 RPW is a compact radial pressure wave device that is light enough to be carried while helping to deliver a host of features and benefits. Learn More
  • Product Details
  • Features & Benefits
  • Standard Accessories
  • Technical Specs
  • Documents

Product Details

The Intelect® Mobile 2 RPW is a compact radial pressure wave device that is light enough to be carried while helping to deliver a host of features and benefits. Suited to help reduce muscle pain and aches, temporarily increase blood flow, and activate connective tissue, the compact design allows clinicians to move around the clinic or the sports field with ease.

A user-friendly interface features simple, ergonomically laid out controls to allow key parameters to be easily changed. Pair with D-ACTOR® applicators for high frequency and intensive use, or V-ACTOR® applicators for vibration massage therapy.

Features & Benefits

  • Helps Relieve Muscle Pain & Discomfort: Helps patients recover faster and feel more comfortable.
  • Boosts Circulation: Temporarily increases blood flow to promote healing and tissue repair.
  • Stimulates Connective Tissues: Helps support recovery in tendons, ligaments, and fascia.
  • Multi-Discipline Functionality: Mobile 2 RPW can be used in orthopedics, rheumatology, physical medicine, physiotherapy, acupuncture, athletic training, podiatry, and chiropractic care.

Technical Specs

R-SW OPERATING MODE: Single shock, continuous shock; 1.0–4.0 bar/max 21 Hz; 4.6 bar/max 15 Hz; 5.0 bar/max 12 Hz
V-ACTOR® OPERTAING MODE: 1.4–3.0 bar/ max 31 Hz; 3.8 bar/max 22 Hz; 5.0 bar/max 13 Hz
MAINS OUTPUT VOLTAGE: 100–240 VAC
MAINS FREQUENCY: 50–60 Hz
MAINS FUSE: T4AL/250 VAC
POWER CONSUMPTION: max 200 VA
COMPRESSED AIR OUT: 1–5 bar
AMBIENT TEMPERATURE DURING OPERATION: 10–40°C
AMBIENT TEMPERATURE DURING STORAGE AND TRANSPORT: 0–60°C frost free
AMBIENT AIR PRESSURE DURING OPERATION: 800–1606 hPa
AMBIENT AIR PRESSURE DURING STORAGE AND TRANSPORT: 500–1060 hPa
AIR HUMIDITY: 5–95%, non-condensing
CONTROL DEVICE WEIGHT: 8.2 kg
HOUSING DIMENSIONS (WXHXD): 490 X 290 X 400 mm
CLASSIFICATION ACCORDING TO MDD: Class IIa device
PROTECTION AGAINST THE INGRESS OF WATER: IPX1
