TX Traction Unit

SKU: 4759

The Chattanooga® TX Traction Unit helps restore spinal function by mobilizing muscles, joints, and ligaments while decompressing nerve roots and intervertebral discs. It can help reduce disc nerve pressure, relieve nerve compression, improve circulation, and relax muscles. Learn More

$ 4,707.74

  • Product Details
  • Features & Benefits
  • Technical Specs
  • Documents

Product Details

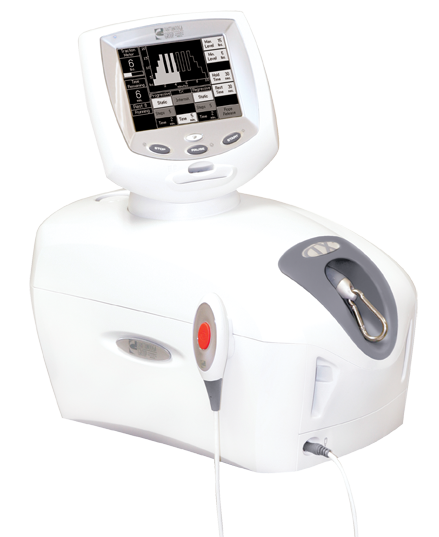

The Chattanooga® TX Traction Unit helps restore spinal function by mobilizing muscles, joints, and ligaments while decompressing nerve roots and intervertebral discs. It can help reduce disc nerve pressure, relieve nerve compression, improve circulation, and relax muscles. Graduated static, intermittent, and cyclic traction mimics hands-on therapy with controlled, repeatable forces. The digital monochromatic touchscreen pivots 270 degrees and features 10 user-defined protocol slots to store customized settings. Store treatment parameters, pain scales, and pain maps on patient cards.

Features & Benefits

  • Easy to operate
  • 270¡ pivoting user interface
  • Digital monochromatic touch screen interface
  • Patient Data Cards record up to 14 treatment sessions
  • Store up to 10 user defined protocols
  • Intermittent, static and cyclic traction
  • Progressive and regressive steps
  • User-defined hold, rest and treatment times
  • Traction tension parameters: 0-200 lbs
  • Built-in safety features:
    • Patient Interrupt Switch
    • Cervical maximan poundage warning
    • Audible signal at the end of treatment and if Patient Interupt Switch activates
  • Two-year warranty

Technical Specs

Mains Power: 100-240 V, 50/60 Hz
Power Consumption: 75 V
Current Consumption: 3.2 Amps Max
Product Weight: 30 lbs (14 kg)
Dimensions: 17.5"L x 9.5"W x 17.5"H (45 cm x 24 cm x 45 cm)
Electrical Safety Class: Class 1, Type B
Safety Tests: IEC/UL/EN: 60661-1, 60601-1-2; CAN C22.2 No. 601.1-M90 w/A2; cETLus Listed
Traction Tension Parameters: Minimum - Maximum - Increments
Traction Period: 1 - 99 Minutes, 1 Minute
Hold Period: 0 - 99 Seconds, 1 Second
Rest Period: 0 - 99 Seconds, 1 Second
Traction Tension: 0 - 200 lb [(0 kg/0 N) - (90 kg/890 N), 1 lb (1 kg/5 N)
Progressive Steps: 1 Step - 9 Steps, 1 Step
Regressive Steps: 1 Step - 9 Steps, 1 Step<
